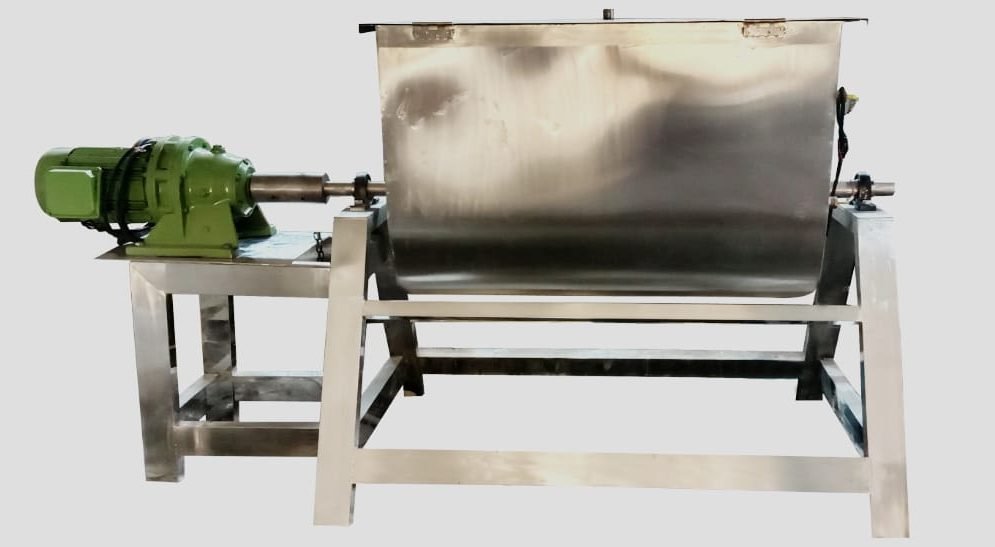

Heating Ribbon Blender Mixer
February 1, 2021
Mini Sifter Vibrator
May 1, 2021
Pulverizer Pin Mill Grinder
M.O.Q : 1
Rotter Size : 18″
Length : 3.5′
Width : 3′
Height : 4′
Material : SS-L-304
Our Production Capacity : 5 Machines / Month
For more details about Grinder Machine Prices, WhatsApp us now at +92 315 2079057

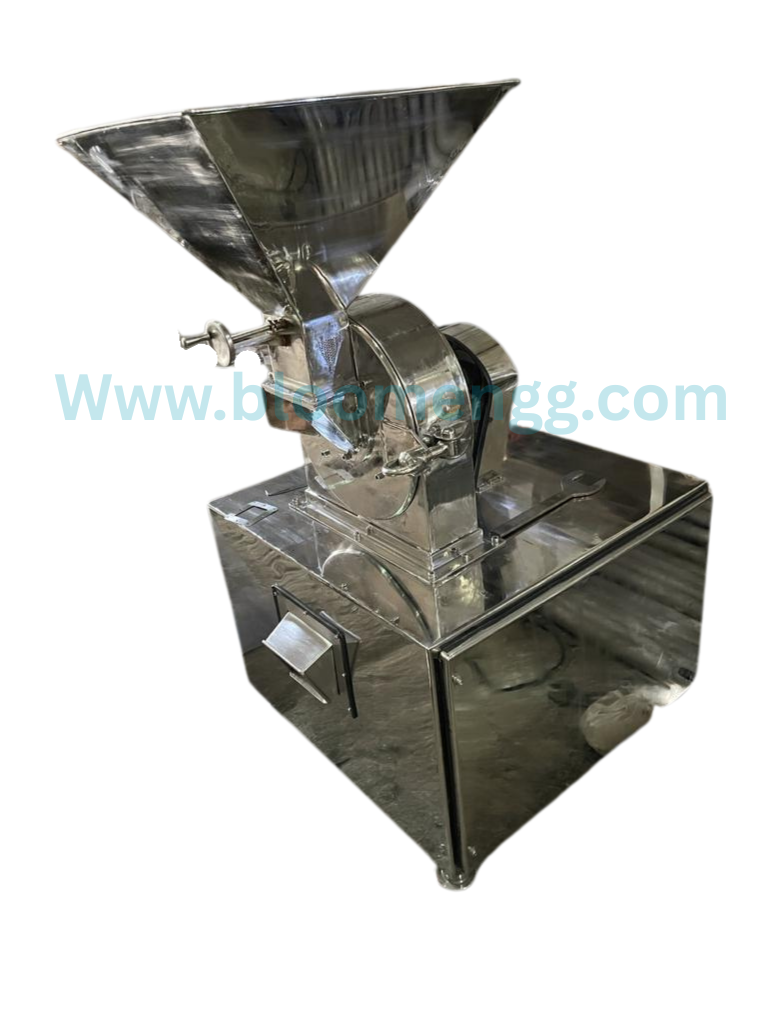

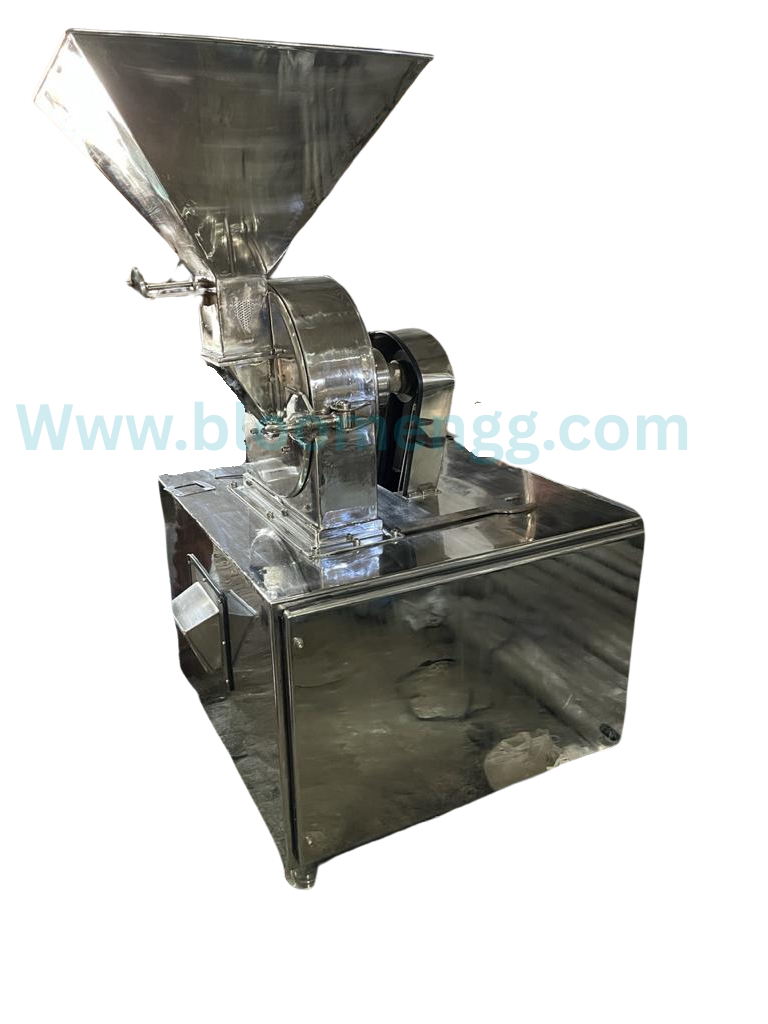

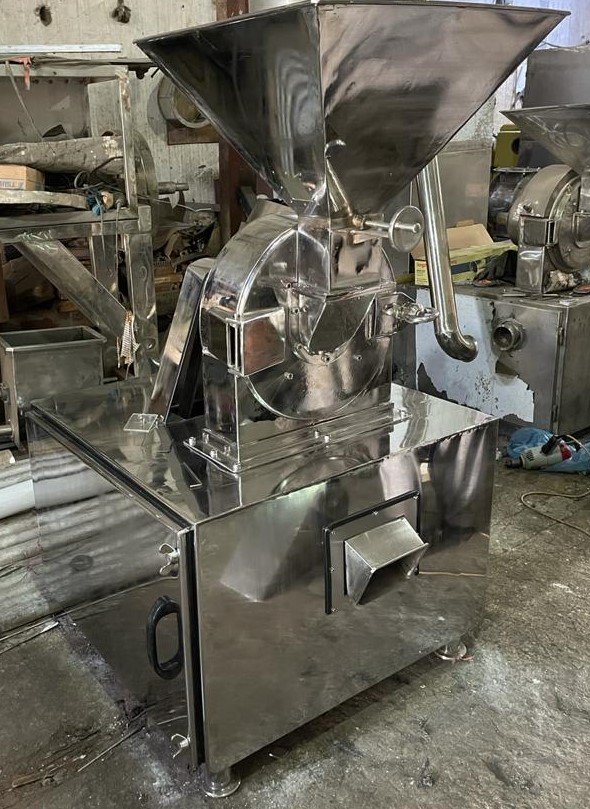

Pulverizer Pin Mill Grinder (Spices, Herbs, Salt & Stones Grinder):
A Pulverizer Pin Mill Grinder (or simply Pin Mill) is a high-speed impact size-reduction machine designed to grind soft to medium-hard dry bulk materials into fine powders or slurries.

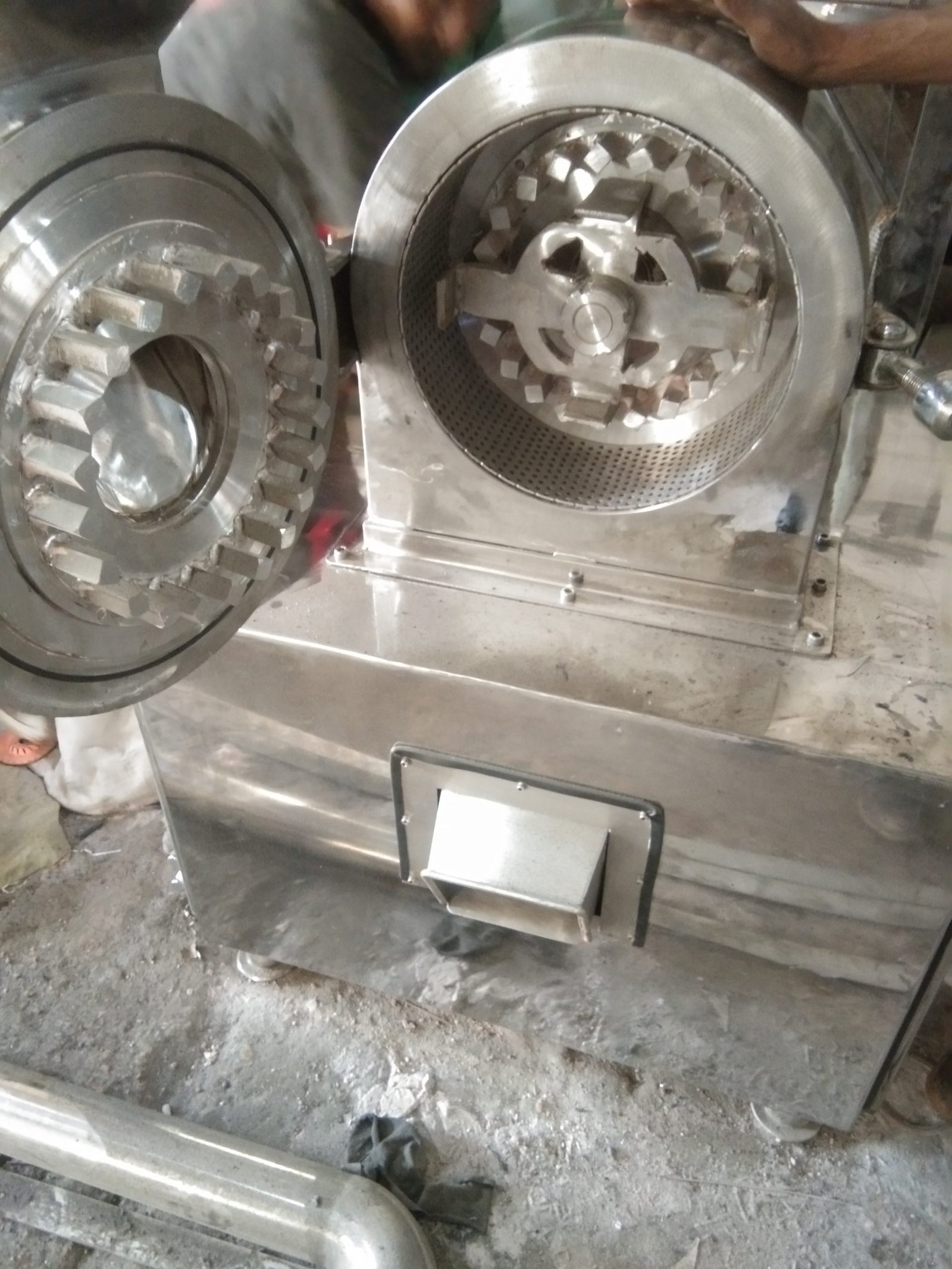

Unlike screen-based hammer mills, a pin mill relies on high-velocity mechanical impact and shear generated by intermeshing rows of steel pins mounted on rotating and stationary discs.
| Sr.No | Model Number | Power (HP) Motor Drive | Capacity in Kgs | L x W x H |
|---|---|---|---|---|
| 1 | PV–120 | 15 | 120 – 200KGS | 3’x3’x4’ |
| 2 | RM–200 | 25 | 200 – 300KGS | 4’x4x5’ |
| 3 | With Cyclone | 25 | 150 – 300KGS | 4’x4x7’ |
Technical Parameters:
-Machine made in : Stainless Steel L-304 food grade.
-Motor drive : 15Hp three phase.
-Production capacity : 120 – 200kgs /Hour on spices, Salt , & Other stone products.
-Mesh sizes available : 0.5mm – 10mm for granular particles.
Specifications & Features:
Applications Of Pin Mill Grinder / Grinder Machine:
-Spices grinding purposes.
-Stone salt , chromite or any kind of ore grinding purpose.
-Chemical industry for making powder of certain stone form products.
-Pin Mill pharmaceutical applications.
-Spices Grinder can be used as Grain grinding Machine for Home & industrial use because the machine can be used as multi purpose spice grinding machine.
–Pulverizer is being used as Domestic flour mill, Spice grinding machine, Red Chilli Grinder Machine, Salt Crusher and Grinding Machine, Herbal products grinder machine for small business owners as well industrials usage for high production capacities pulverizer.
-High Speed Dry Masala Grinder Machine.
-
Powdered & Icing Sugar: Converts granulated white sugar into ultra-fine 10X or confectioner’s sugar in a single pass.
-
Spices & Seasonings: Pulverizes black pepper, chili, cinnamon, coriander, cumin, and garlic/onion flakes into fine culinary powders.
-
Cocoa & Confectionery: Grinds cocoa cake presses into cocoa powder and processes milk powder, whey solids, and coffee beans.
-
Starches, Grains & Legumes: Mashing and fine milling of cornstarch, tapioca, rice flour, chickpea flour, and dehydrated vegetable flakes.
