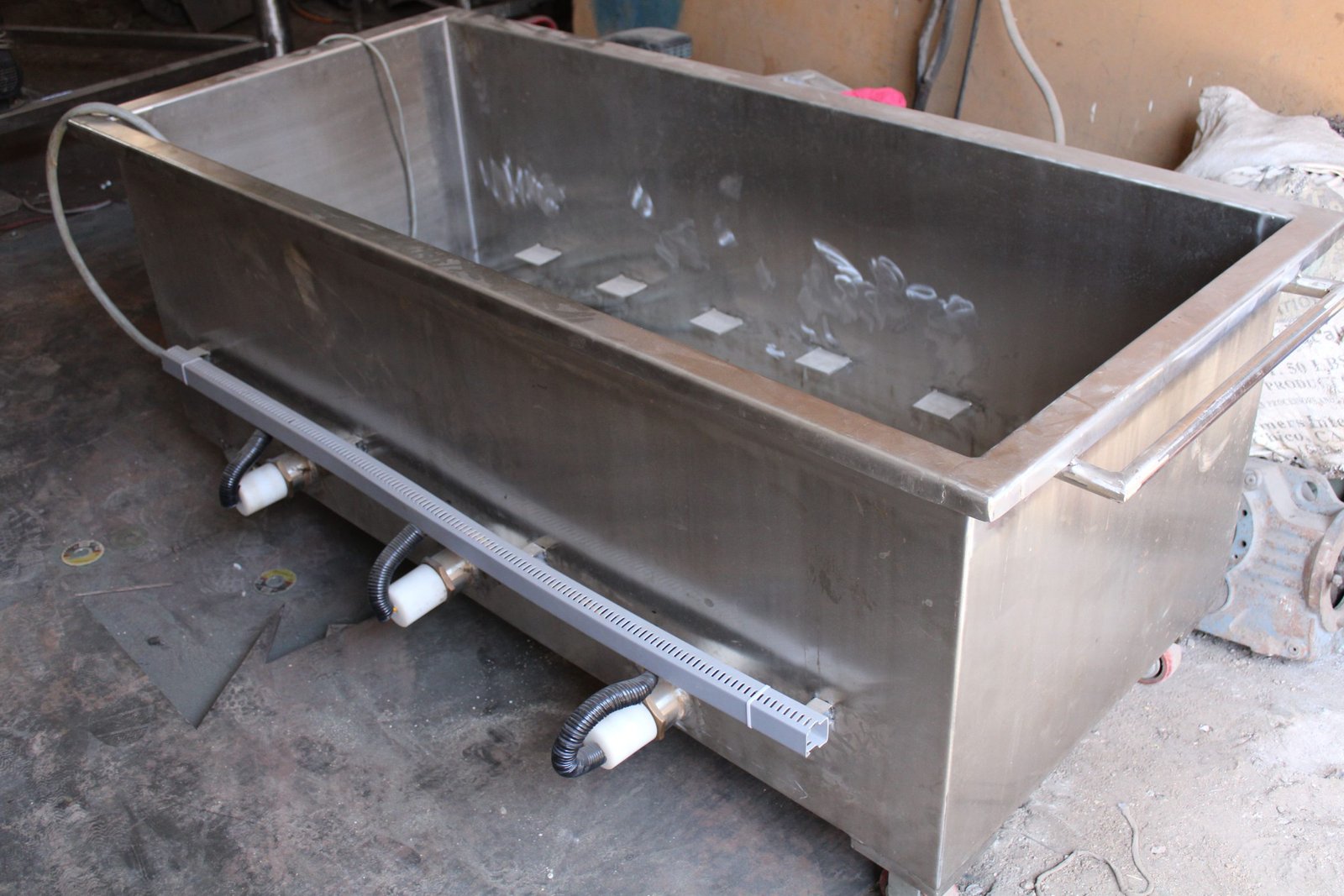

SS Boiling Water Tub
May 25, 2023

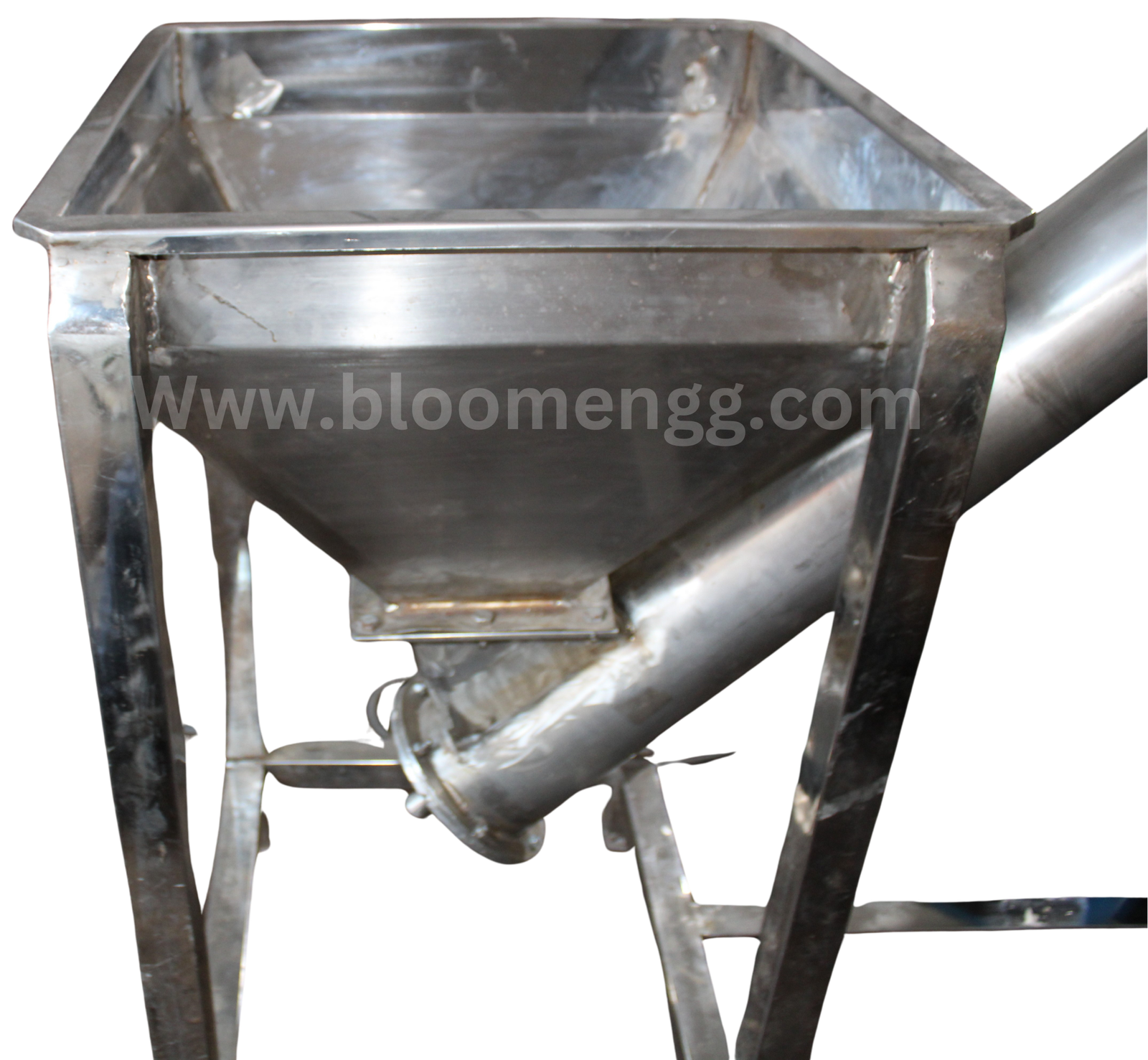

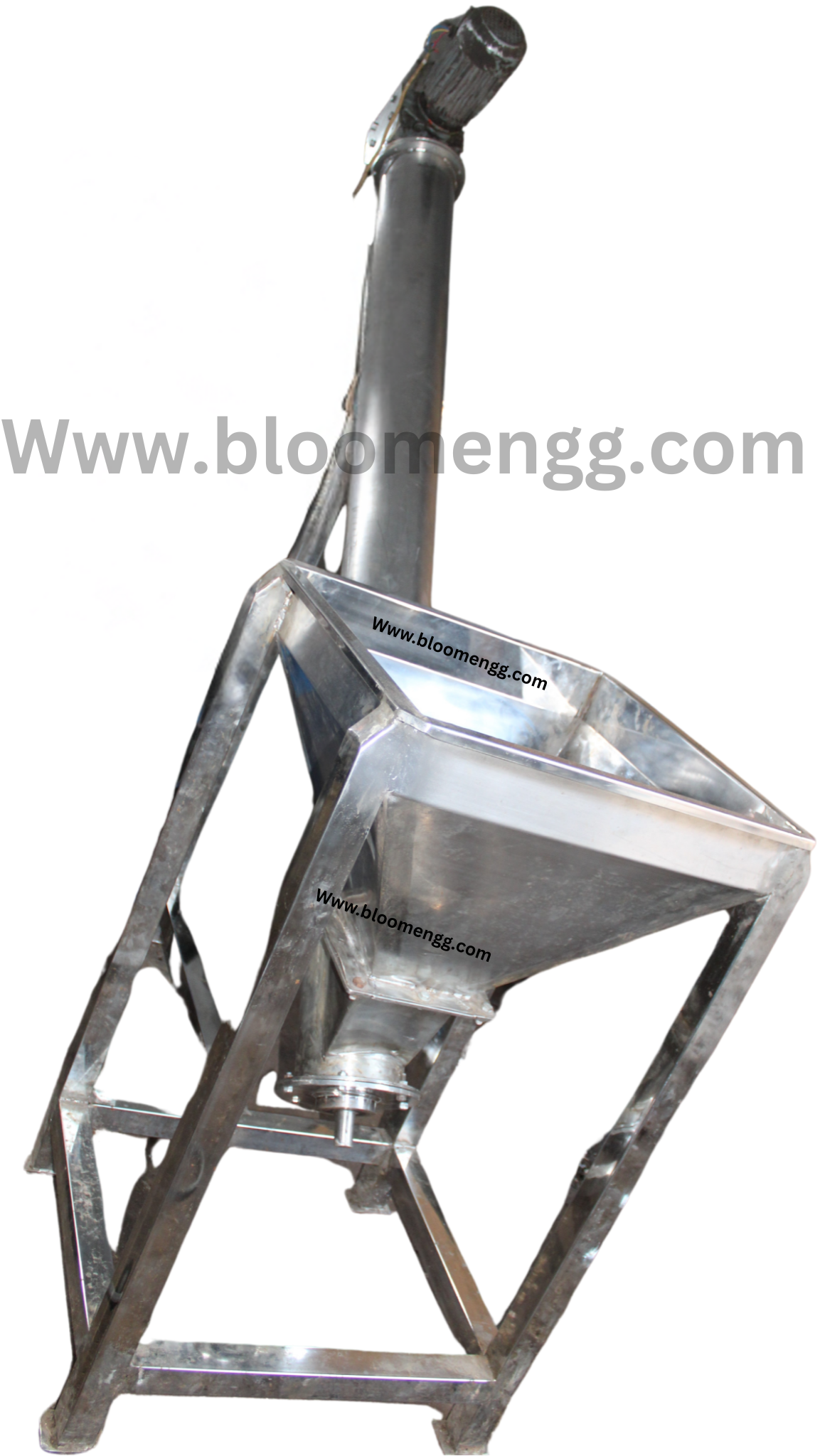

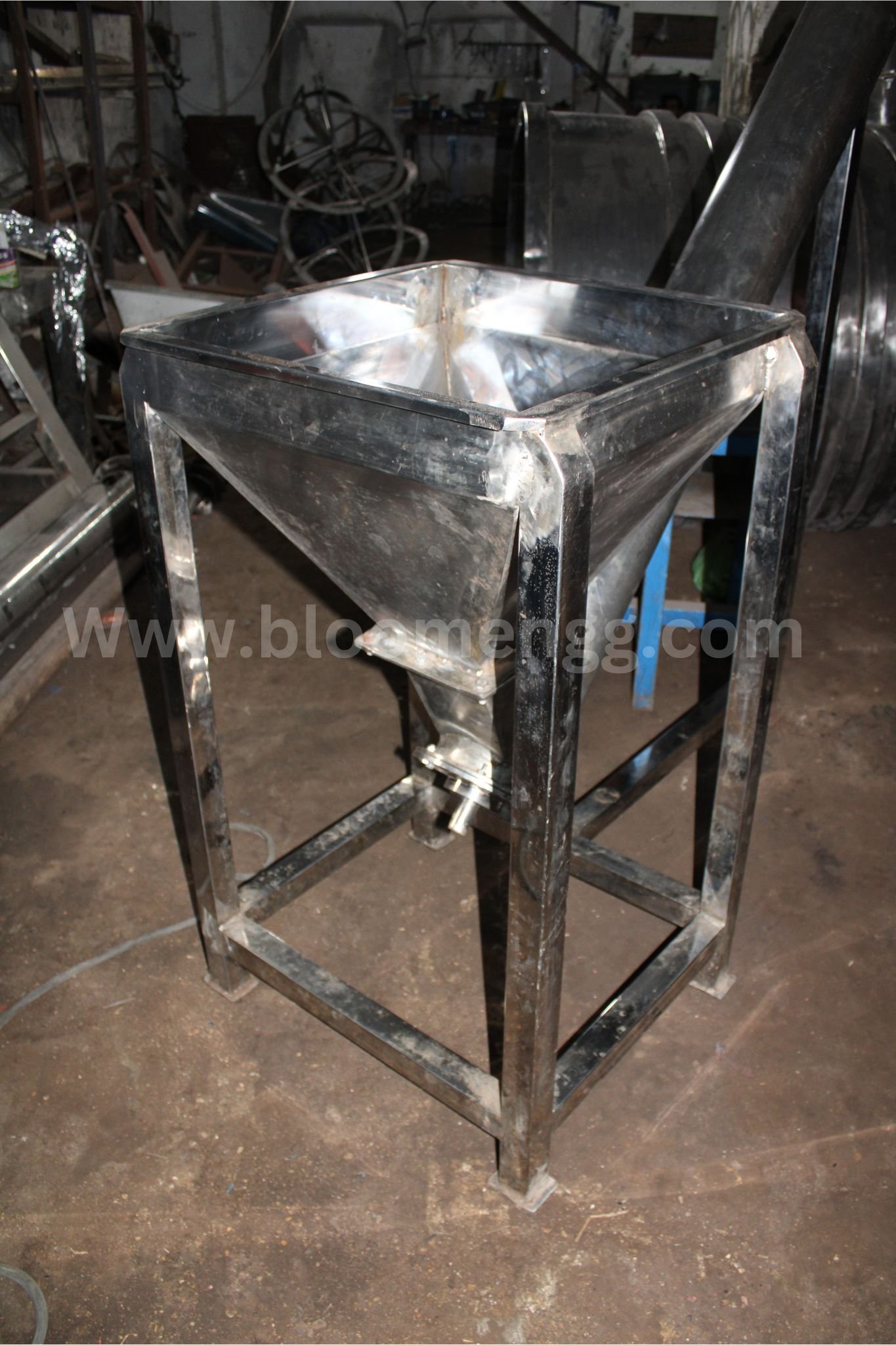

SS Screw Auger Conveyor
Length : 7′
Diameter : 6 ”
Material : SS L-304
M.O.Q : 1
Gear Motor : 2Hp three phase
Condition : Brand New Made to order
SS Screw Auger Conveyor Specification & Features :
Length : 7′ (Customized)
Diameter : 6 ” (Customized)
Material : SS L-304
M.O.Q : 1
Gear Motor : 3Hp three phase (Depends Capacity)
Condition : Brand New Made to order
Components Of A Screw Warm Conveyor :
- Screw warm (Auger) : The helical blade that moves the material (Powder/Grains).
- Trough or Tube : The casing Pipe converging inside which screw and material travel.
- Bearings & Hangers : NTN/SKF Bearings are used to Support the screw along its whole length.
- Inlet Hopper : Feeding Shoot is the product feeding Openings for material entry.
- Outlet Shoot : Auger End Openings for material Exit.
Different Types Of a Screw Auger Conveyor :
- Vertical Screw Conveyor : Moves materials vertically mostly used in transferring bulk capacities..
- Shaftless Screw Conveyor : when the product material is sticky or viscous that may clog on screw conveyor with a central shaft therefore we manufacture/use shaftless screw auger conveyor.
- Tubular Screw Conveyor : Some materials in pharmaceuticals & food industry are very sensitive to contact with the envirement therefore it needs Fully enclosed type screw warm system to prevent material spillage and contamination.
Screw Conveyor Industrial Applications :
-sludge screw conveyor ,Transporting Sludge through screw conveyor is a best option.
-Coal Powder Transferring through screw conveyor.
-Cement Transporting applications of cement industry equipment’s screw conveyor has a major role to play.
-In Agriculture Industry(grain handling).
-Food processing Industry (flour, sugar, spices Etc)
–Mining and construction Industry uses as to transport (cement, sand Etc)
