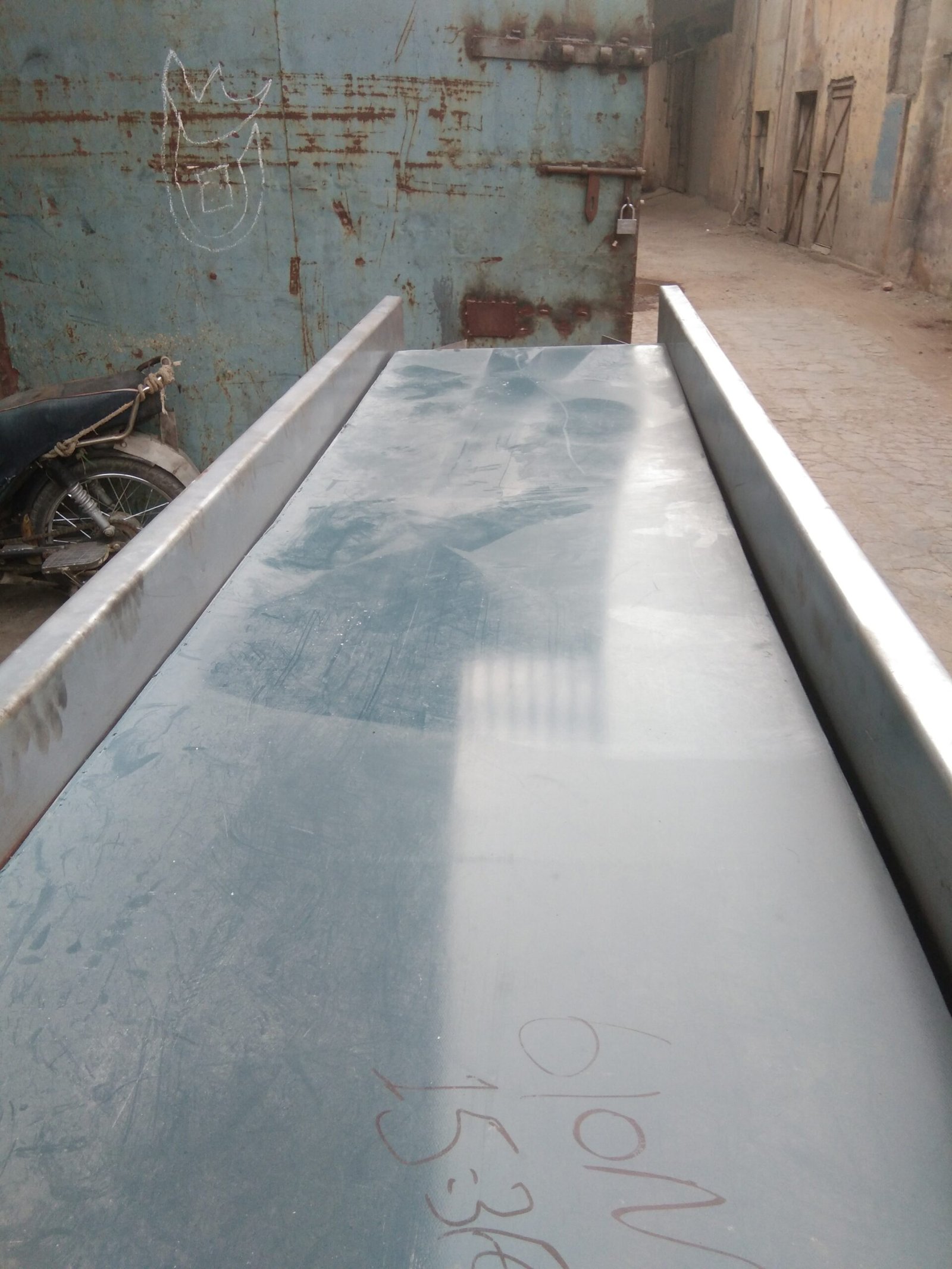

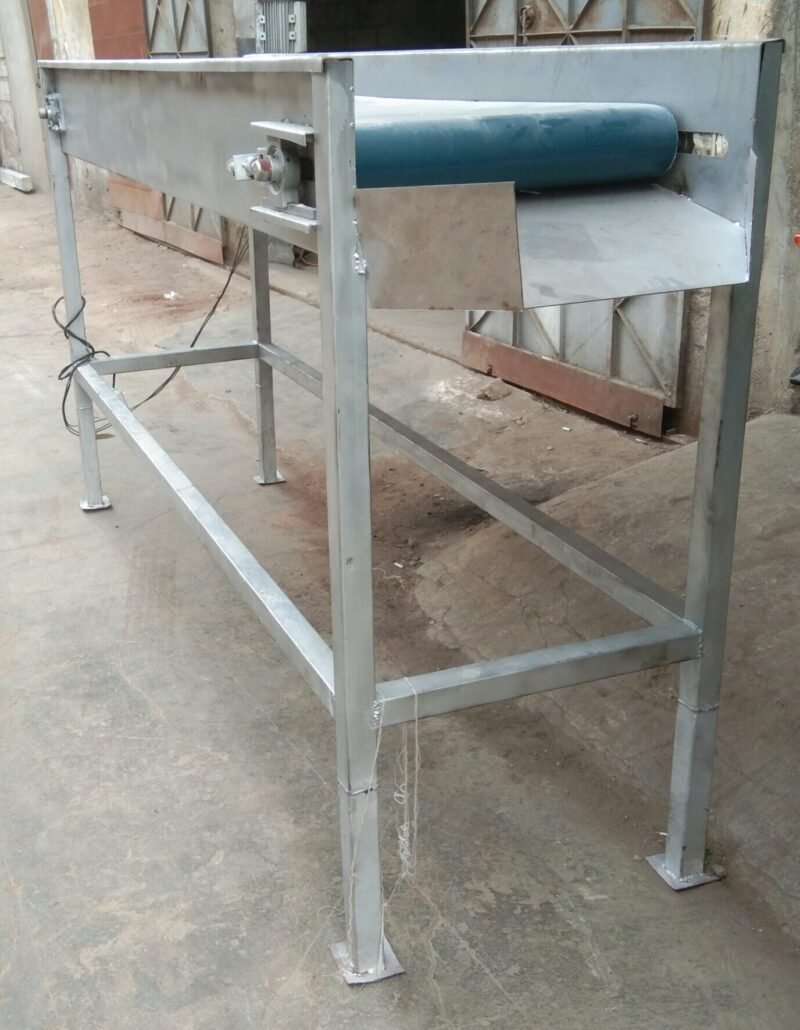

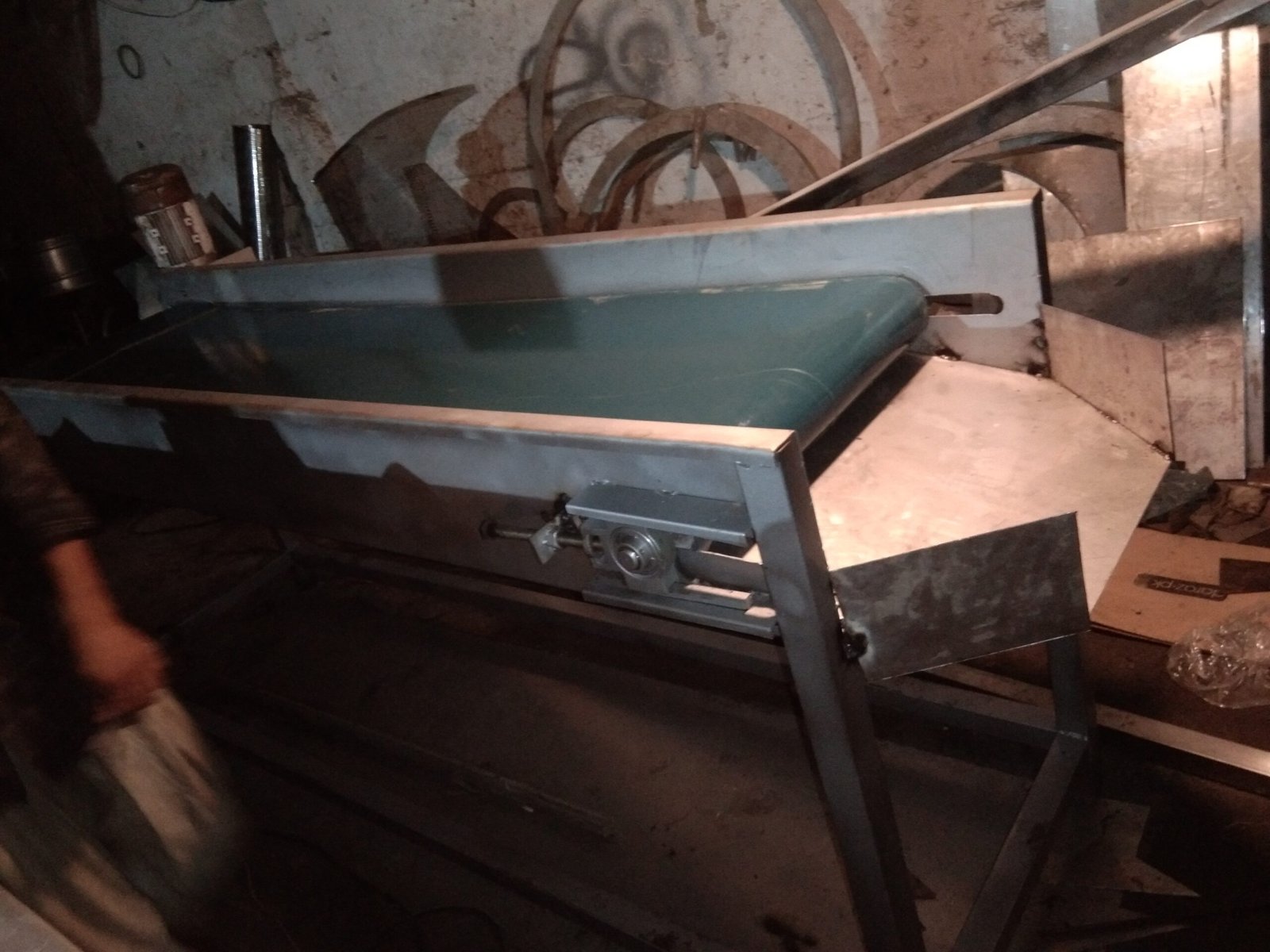

Teflon Belt Conveyor
Length : 8′
Width : 2′
Height : 4′
Material : M.S / S.S
Sheet : 2mm
Gear Motor : 2Hp
Horizontal Flat Belt Conveyor:
A horizontal flat Teflon belt conveyor (often referred to as a flat bed belt conveyor) is material handling equipment used to transfer discrete products, packages, bulk ingredients, and parts in a straight, level path across processing stages.
Unlike troughed belt conveyors (used primarily for loose bulk solids like grains or gravel), a flat bed conveyor supports the carrying belt on a smooth metal slider bed or spaced roller bed frame. This design maintains a stable
These horizontal flat bed Teflon Belt conveyors may be integrated with a wide range of conveyor types to build a system to meet your needs.
- Solid neat construction.
- Made to order..
- Options are variable speed, indexing and reverse function.
Working Principle & Basic Anatomy :
-
Drive Mechanism: A head-end gear motor rotates a drive pulley, which uses friction to pull the continuous belt loop over the frame.
-
Support Bed:
-
Slider Bed (Metal Sheet): Provides a continuous flat surface for smooth, vibration-free transportation of lightweight packages or manual sorting lines.
-
Roller Bed (Carrying Rollers): Reduces friction for heavier loads, minimizing motor horsepower requirements over longer conveying distances.
-
-
Return Bed: Idler rollers support the empty returning belt underneath the frame structure.
